ANODES FOR ELECTROPLATING
The prime quality of Peruvian electrolytic SHG zinc, of 99.995% minimum purity, makes it the ideal raw material for the production of electroplating anodes. Customers in Austria, Belgium, Denmark, Czech Republic, Chile, France, Finland, Germany, Italy,
Japan, Poland, Portugal, Romania, Spain, Sweden, Switzerland, The Netherlands, United Kingdom and United States already know the advantages of IEQSA anodes for this application.

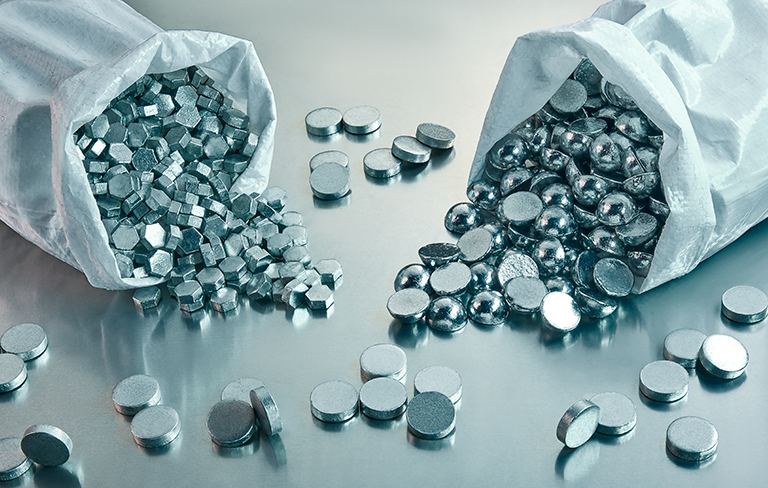

Whether in the form of zinc balls (50 mm and 40 mm diameters), half-balls, domes, hexagonal shapes, or zinc plates, these IEQSA products for electrogalvanizing are available to markets worldwide.
If you need zinc anodes in other formats, please do not hesitate to consult us!
Whether in the form of zinc balls (50 mm and 40 mm diameters), half-balls, domes, hexagonal shapes, or zinc plates, these IEQSA products for electrogalvanizing are available to markets worldwide.
If you need zinc anodes in other formats, please do not hesitate to consult us!
Zinc Anodes: Balls And Half Balls
Hexagonal Zinc Anodes
Rolled Zinc Plate Anodes
VIEW TECHNICAL SHEET

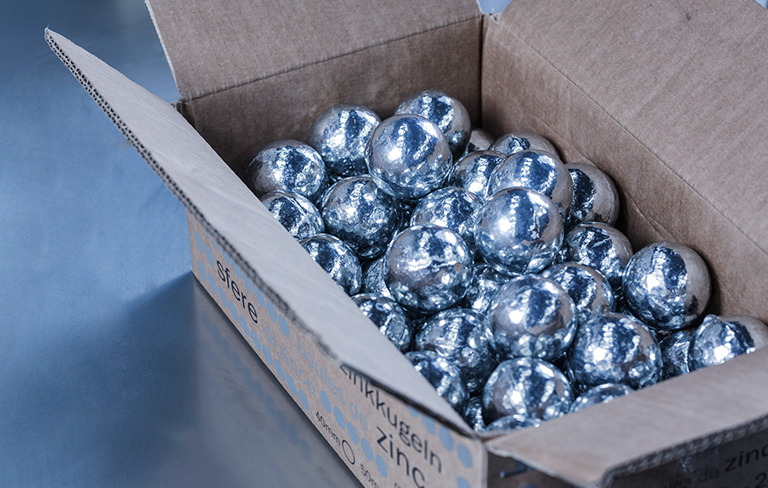

Zinc Anodes: Balls And Half Balls
1. Dimensions:
DIAMETER (MM) | SHAPE |
---|---|
50 | Balls |
40 | Balls |
50 | Half balls |
2. Chemical composition:
Balls are produced from SHG ZINC (Norm BS EN 1179:2003 / Norm ASTM 86-03).
ELEMENT | % |
---|---|
Pb | Max. 0,003 |
Cd | Max. 0,003 |
Fe | Max. 0,002 |
Sn | Max. 0,001 |
Cu | Max. 0,001 |
AI | Max. 0,001 |
Zn | Min. 99,995 |
Total impurities ≤ 0,005 %

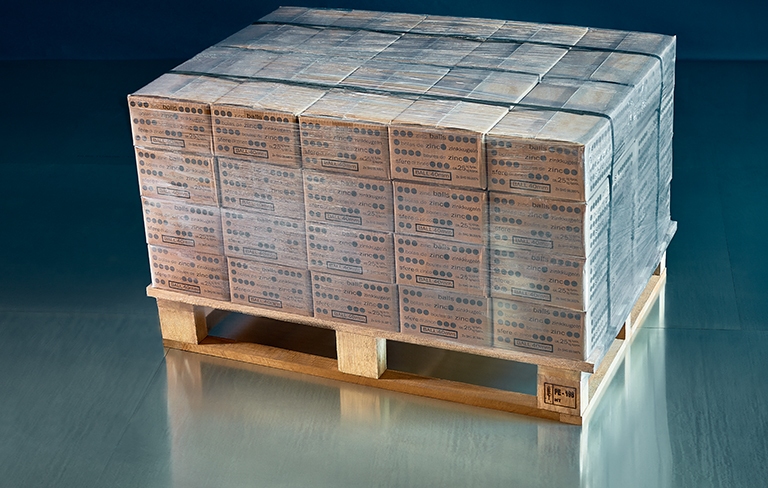

3. Standard Packaging
- 40 carton boxes of 25 kg each, arranged on a wooden pallet which complies with ISPM norm N9 15, secured with plastic straps and wrapped with stretch film.
TECHNISCHES DATENBLATT
Hexagonal Zinc Anodes
1. Abmessungen:
Length of the diagonal : 19 mm (referential)
Thickness : 10 mm max (referential)
Thickness : 10 mm max (referential)
2. Chemical composition:
Hexagonal zinc anodes are produced from SHG ZINC (Norm BS EN 1179:2003 / Norm ASTM
86-03).
ELEMENTE | % |
---|---|
Pb | Max. 0,003 |
Cd | Max. 0,003 |
Fe | Max. 0,002 |
Sn | Max. 0,001 |
Cu | Max. 0,001 |
AI | Max. 0,001 |
Zn | Min. 99,995 |
Total impurities ≤ 0,005 %
3. Standard Packaging
- 40 carton boxes of 25 kg each, arranged on a wooden pallet which complies with ISPM norm N9 15, secured with plastic straps and wrapped with stretch film.
TECHNISCHES DATENBLATT

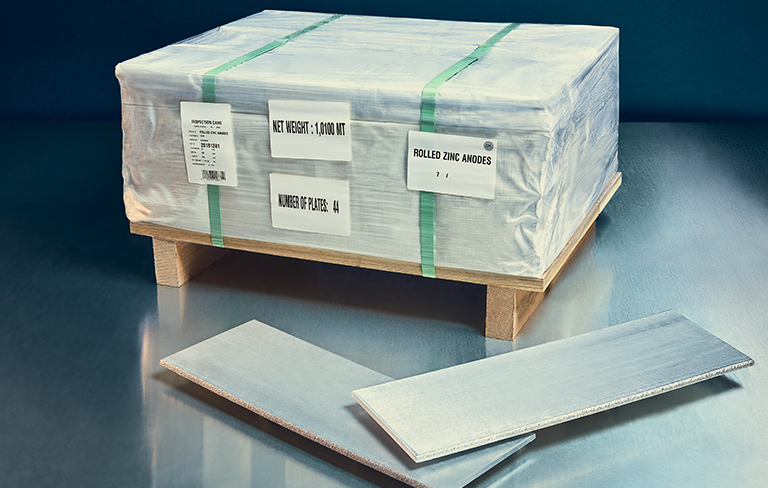

Rolled Zinc Plate Anodes
1. Dimensions:
Abmessungen (mm) | |
---|---|
Thickness | 20 max. |
Width | 40 – 200 |
Length | Up to 1500 |
2. Chemical Composition
Zinc plates are produced from SHG ZINC (Norm BS EN 1179:2003 / Norm ASTM B6-03).
ELEMENTE | % |
---|---|
Pb | Max. 0,003 |
Cd | Max. 0,003 |
Fe | Max. 0,002 |
Sn | Max. 0,001 |
Cu | Max. 0,001 |
AI | Max. 0,001 |
Zn | Min. 99,995 |
Total impurities ≤ 0,005 %
3. Standard Packaging
1 ton of plates arranged on a wooden pallet which complies with ISPM norm Nº 15, secured with plastic straps and wrapped with stretch film.
