PRODUCTS FOR BATTERIES
Industrias Electro Químicas is also a manufacturer of various specialized zinc items designed for the battery industry.

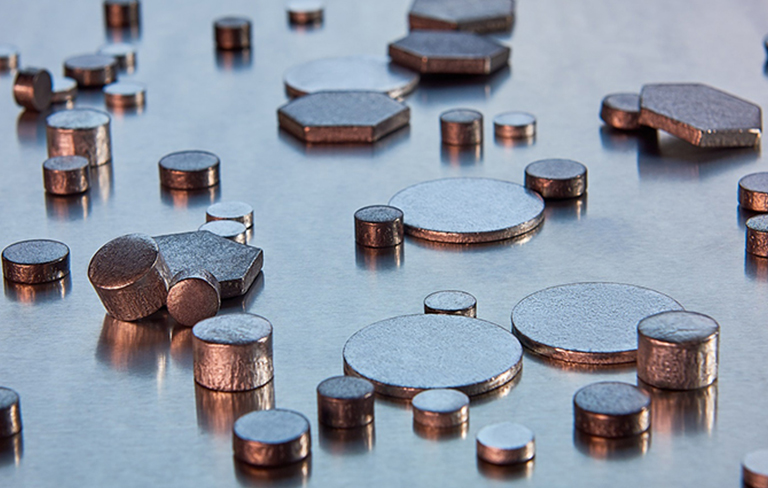

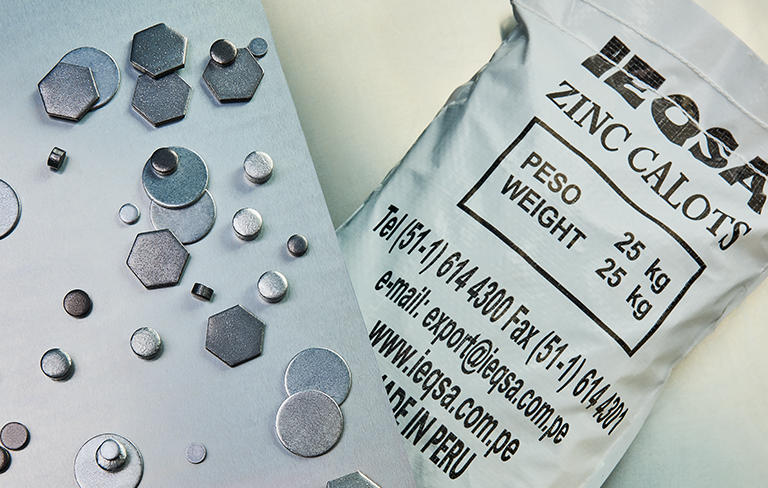

Among these, perhaps IEQSA’s most world renowned product is Zinc Calots or Zinc Slugs used in the manufacture of cans for Dry Cell Batteries. This is an item which we already supply on a regular basis to battery makers in 25 countries, of all continents. Our zinc calots are manufactured as per the alloys, dimensions and hardness characteristics indicated by each customer. We have available a full range of zinc calots, from R-25 to R-03, round or hexagonal, with or without lubrication, in Cadmium and Cadmium-free alloys.
IEQSA also produces special rolled zinc strips for electrochemical use.
Among these, perhaps IEQSA’s most world renowned product is Zinc Calots or Zinc Slugs used in the manufacture of cans for Dry Cell Batteries. This is an item which we already supply on a regular basis to battery makers in 25 countries, of all continents. Our zinc calots are manufactured as per the alloys, dimensions and hardness characteristics indicated by each customer. We have available a full range of zinc calots, from R-25 to R-03, round or hexagonal, with or without lubrication, in Cadmium and Cadmium-free alloys.
IEQSA also produces special rolled zinc strips for electrochemical use.
VIEW TECHNICAL SHEET
Zinc Calots for Batteries (For Production of Zinc Cans by Extrusion)
1. Physical and Chemical Characteristics:
- Calots are produced from high purity Zinc
- Extremely low level of impurities
- Calots can be supplied lubricated or non lubricated, in round or hexagonal shape, according to the table below
2. Standard Dimension Tolerances:
TYPE
DIMENSION | R20 Round | R20 Hexagonal | R14 Round | R14 Hexagonal | R12 Round | R6 Round | R3 Round |
|---|---|---|---|---|---|---|---|
Diameter (mm) | ± 0,10 | – | ± 0,10 | – | ± 0,10 | ± 0,10 | ± 0,10 |
Length of diagonal (mm) | – | ± 0,20 | – | ± 0,20 | – | – | – |
Weight (g) | ± 0,55 | ± 0,55 | ± 0,30 | ± 0,30 | ± 0,30 | ± 0,15 | ± 0,15 |
Thickness (mm) | ± 0,10 | ± 0,10 | ± 0,10 | ± 0,10 | ± 0,10 | ± 0,10 | ± 0,10 |
3. Standard Alloys
The standard alloy types available are:
PMA: Zinc – Lead – Manganese
PXE: Zinc – Lead – Cadmium
PMG: Zinc – Lead – Magnesium
PMA: Zinc – Lead – Manganese
PXE: Zinc – Lead – Cadmium
PMG: Zinc – Lead – Magnesium

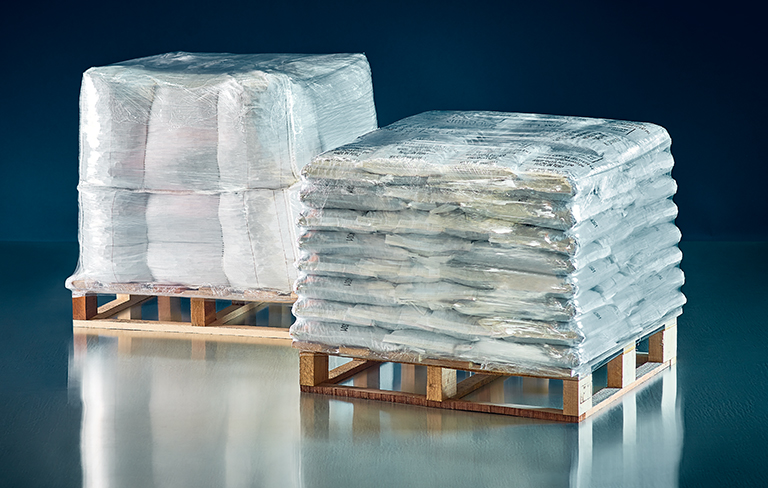

4. Standard Packaging
- 80 woven polypropylene sacks of 25 kg each, arranged on a plastic wrapped pallet
- 2 big bags of 1000 kg each, arranged on a plastic wrapped pallet
