Zinc Alloys - Zamac And Others
IEQSA has accumulated more than four decades of experience in the production of zinc alloys for the most diverse uses and applications.
For the users of Zinc Zamak (Zamac), for example, we are supplying a complete range of these alloys, as these are defined by the technical norms EN1774 (Europe), ASTM B240-07 (USA) and others.
To handle the variety and complex range of alloys that we produce daily, we count on chemical analysis equipments of the highest precision, reliability and versatility, both through the method of atomic absorption and through atomic emission. No company in Peru has the years of experience accumulated by IEQSA in producing zinc alloys. To dominate the processes of zinc alloys, with the suitable control of their composition and homogeneity, as well as in the precise control of impurities, is the initial step of all our main production activities.
Zamac Tonsul
Zamac 2
Zamac 3
Zamac 5
Zamac 7
VIEW TECHNICAL SHEET
Zamac Tonsul
1. Chemical Composition:
ELEMENTS | CONTENT (%) |
---|---|
Al | 3,9 – 4,1 |
Mg | 0,50 – 0,60 |
Cu | 2,75 – 3,1 |
Fe | 0,035 max |
Pb | 0,003 max |
Cd | 0,002 max |
Sn | 0,001 max |
Si | 0,02 max |
Zn | Balance
|
2. Presentations
Type A

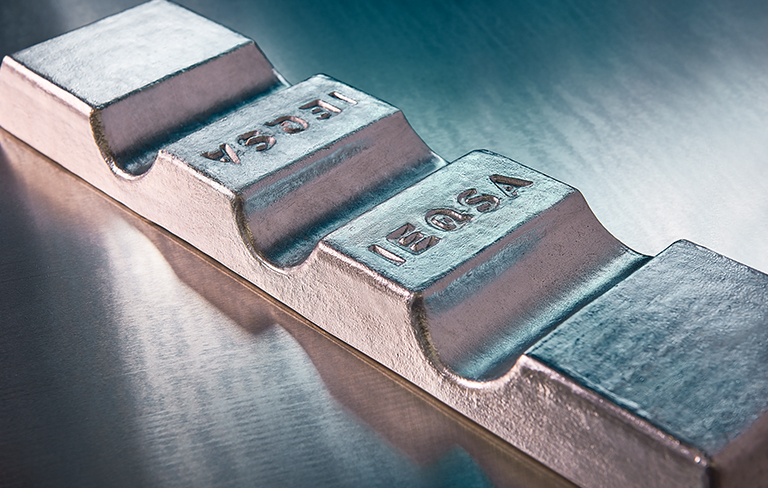

- Typical weight of standard ingots : 10 - 10,5 kg.
- Typical weight of base ingots : 12 - 12,5 kg.

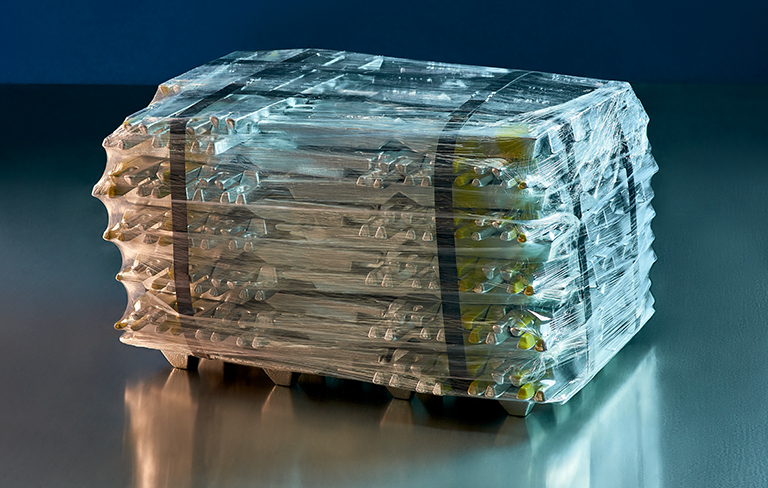

- Quantity of ingots per bundle (4 base ingots + 104 standard ingots) : 108 ingots
- Average weight per bundle : 1000 - 1200 kg.
Typical dimensions
Type B
- Typical weight of standard ingot : 6 – 6,5 kg
- Typical weight of base ingots : 12 – 12,5 kg
- Quantity of ingots per bundle (4 base ingots + 170 standard ingots) : 174 ingots
- Average weight per bundle : 1000 - 1200 kg
Typical dimensions
VIEW TECHNICAL SHEET
Zamac 2
Description:
Zamac 2 zinc alloy. Chemical composition complies with norms ASTM B240-10 and EN 1774.
1. Chemical Composition:
ELEMENTS | CONTENT (%) |
---|---|
Al | 3,9 – 4,2 |
Mg | 0,035 – 0,05 |
Cu | 2,7 – 3,3 |
Ni | 0,001 max |
Fe | 0,020 max |
Pb | 0,003 max |
Cd | 0,0030 max |
Sn | 0,001 max |
Si | 0,02 max
|
Zn | Balance |
2. Presentations
Type A
- Typical weight of standard ingots : (10 - 10,5) kg
- Typical weight of base ingots : (12 - 12,5) kg
- Quantity of ingots per bundle (4 base ingots + 104 standard ingots) : 108 ingots
- Average weight per bundle : (1 000 – 1 200) kg
Typical dimensions
Type B
- Typical weight of standard ingot : (6 – 6,5) kg
- Typical weight of base ingots : (12 – 12,5) kg
- Quantity of ingots per bundle (4 base ingots + 170 standard ingots) : 174 ingots
- Average weight per bundle : (1 000 – 1 200) kg
Typical dimensions
VIEW TECHNICAL SHEET
Zamac 3
Description:
Zamac 3 zinc alloy. Chemical composition complies with norms ASTM 8240-10 and EN 1774
1. Chemical Composition:
ELEMENTS | CONTENT (%) |
---|---|
AI | 3,9 — 4,2 |
Mg | 0,035 — 0,06 |
Cu | 0,03 max |
Ni | 0,001 max |
Fe | 0,020 max |
Pb | 0,003 max |
Cd | 0,0030 max |
Sn | 0,001 max |
Si | 0,02 max
|
Zn | Balance |
2. Presentations
Type A
- Typical weight of standard ingots : 10 - 10,5 kg
- Typical weight of base ingots : 12 - 12,5 kg
- Quantity of ingots per bundle (4 base ingots + 104 standard ingots) : 108 ingots
- Average weight per bundle: (1 000 – 1 200) kg
Typical dimensions
Type B
- Typical weight of standard ingot : 6 — 6,5 kg
- Typical weight of base ingots : 12 — 12,5 kg
- Quantity of ingots per bundle (4 base ingots + 170 standard ingots) : 174 ingots
- Average weight per bundle : 1000 - 1200 kg
Typical dimensions
VIEW TECHNICAL SHEET
Zamac 5
Description:
Zamac 5 zinc alloy. Chemical composition complies with norms ASTM B240-10 and EN 1774
1. Chemical Composition:
ELEMENTS | CONTENT (%) |
---|---|
AI | 3,9 – 4,2 |
Mg | 0,035 – 0,06 |
Cu | 0,7 – 1,1 |
Ni | 0,001 max |
Fe | 0,020 max |
Pb | 0,003 max |
Cd | 0,0030 max |
Sn | 0,001 max |
Si | 0,02 max
|
Zn | Balance |
2. Presentations
Type A
- Typical weight of standard ingots : 10 - 10,5 kg
- Typical weight of base ingots : 12 - 12,5 kg
- Quantity of ingots per bundle (4 base ingots + 104 standard ingots) : 108 ingots
- Average weight per bundle: (1 000 – 1 200) kg
Typical dimensions
Type B
- Typical weight of standard ingot : 6 — 6,5 kg
- Typical weight of base ingots : 12 — 12,5 kg
- Quantity of ingots per bundle (4 base ingots + 170 standard ingots) : 174 ingots
- Average weight per bundle : 1000 - 1200 kg
Typical dimensions
VIEW TECHNICAL SHEET
Zamac 7
Description:
Zamac 7 zinc alloy. Chemical composition complies with norm ASTM B240-10.
1. Chemical Composition:
ELEMENTS | CONTENT (%) |
---|---|
AI | 3,9 – 4,3 |
Mg | 0,010 – 0,020 |
Cu | 0,10 max |
Ni | 0,005 – 0,020 |
Fe | 0,035 max |
Pb | 0,0030 max |
Cd | 0,0020 max |
Sn | 0,0010 max |
Zn | Balance |
2. Presentations
Type A
- Typical weight of standard ingots : 10 - 10,5 kg
- Typical weight of base ingots : 12 - 12,5 kg
- Quantity of ingots per bundle (4 base ingots + 104 standard ingots) : 108 ingots
- Average weight per bundle: (1 000 – 1 200) kg
Typical dimensions
Type B
- Typical weight of standard ingot : 6 — 6,5 kg
- Typical weight of base ingots : 12 — 12,5 kg
- Quantity of ingots per bundle (4 base ingots + 170 standard ingots) : 174 ingots
- Average weight per bundle : 1000 - 1200 kg
Typical dimensions
